Industrial UV LED Curing Lamps for High-Performance Production Lines

High-performance modular LED UV curing lamps designed for precision, efficiency, and full customization.
Built to adapt to every press configuration and production workflow.

Engineered for perfection

• Ultra-high brightness and efficiency

• Excellent thermal stability thanks to liquid cooling

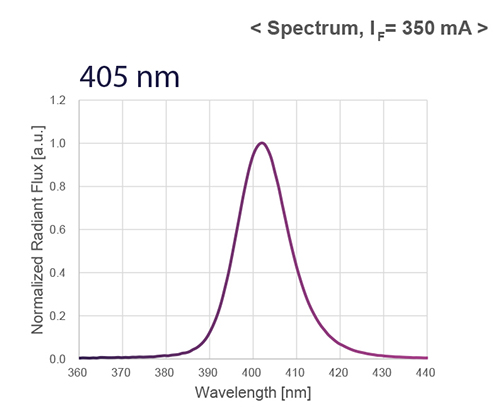

• 365 – 385 – 395 – 405 – 420nm monochrome spectrum. Check our complete COB selection

• Extended durability with lasting high performance

• Zero ozone emissions

• Quick lamp switching with the integrated plug-in power supply and liquid cooler

• Maximum adaptability to any installation, with lamp sizes available from 10cm up to 300cm

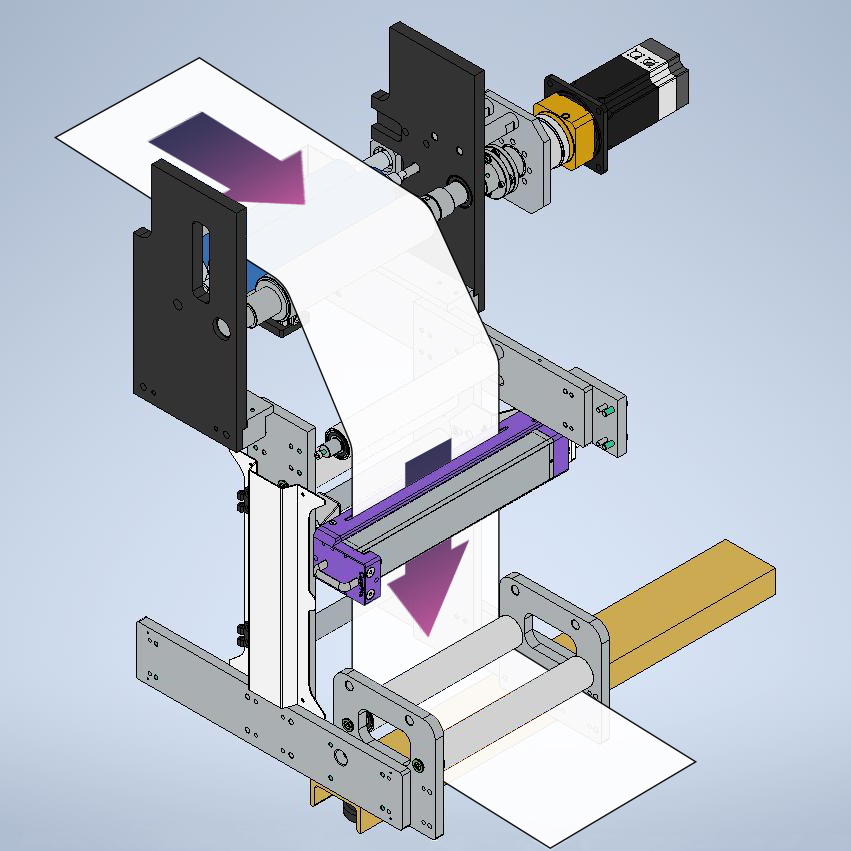

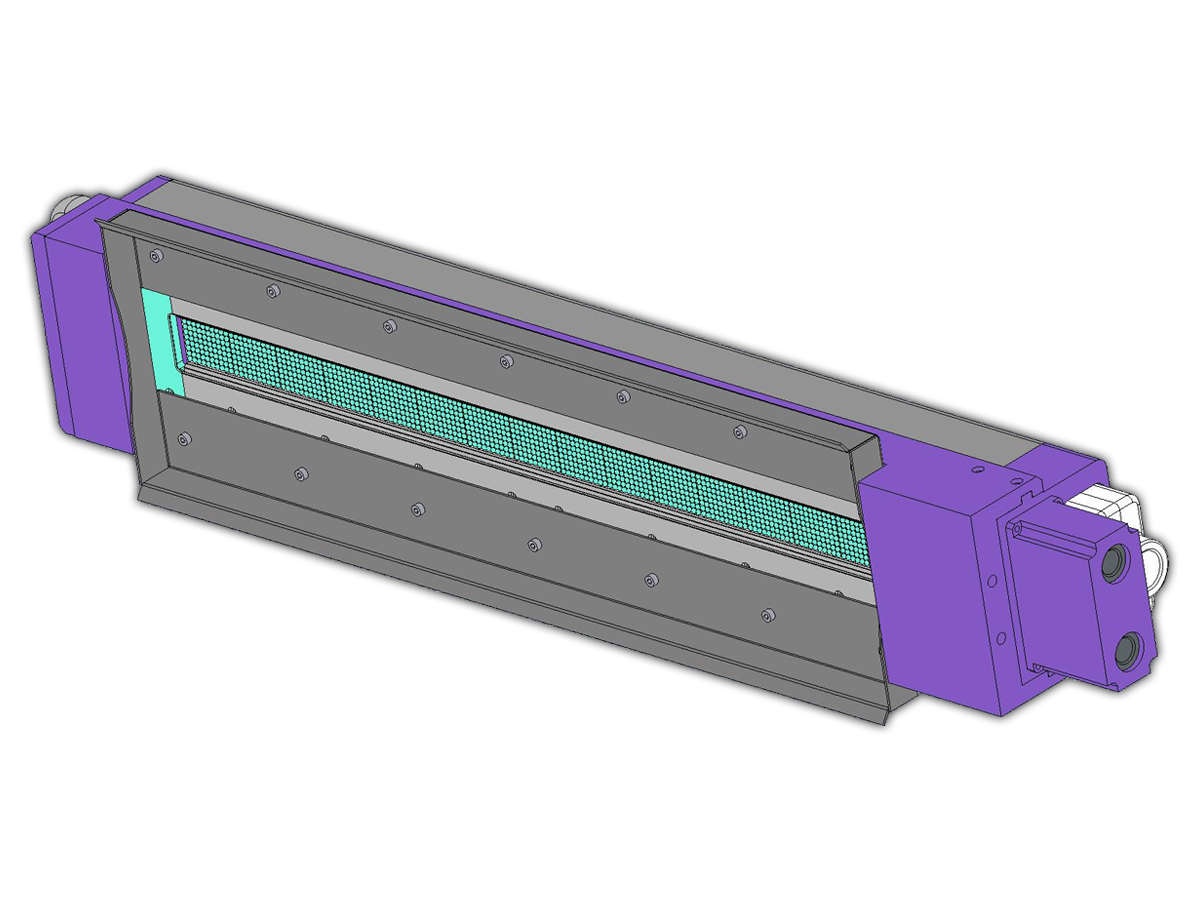

• Suitable for calender systems or straight paper transport lines

Quality without compromises

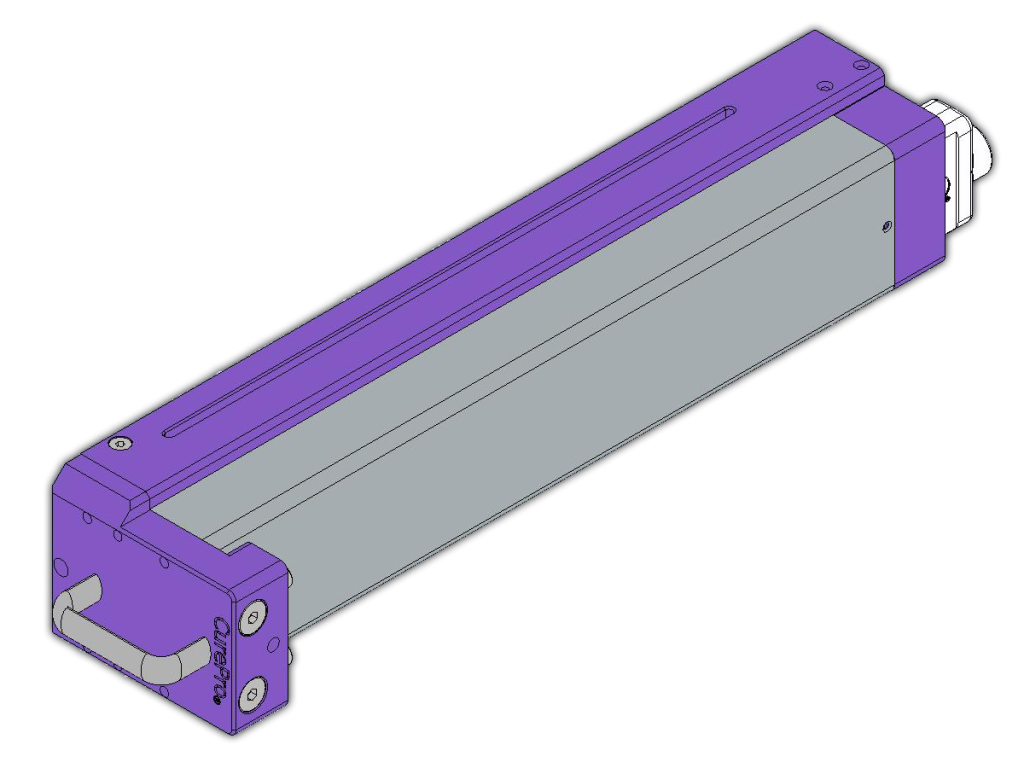

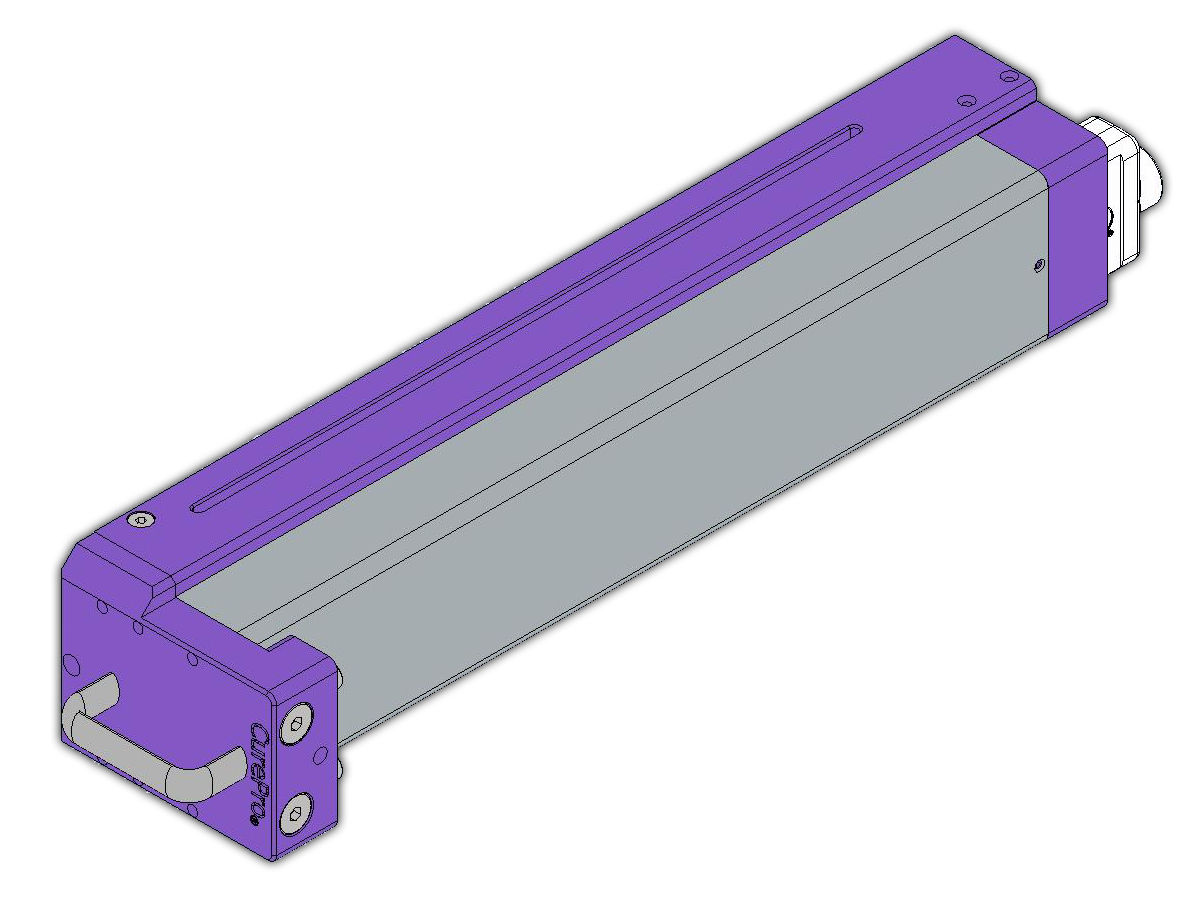

Each lamp integrates its power supply and liquid cooling system directly within the housing, ensuring stable temperature control, extended LED lifespan, and reliable operation even under continuous high-speed production. The system supports multiple UV wavelength combinations, allowing precise tuning of curing behavior for inks, coatings, varnishes, adhesives, and specialty chemistries.

Designed for performance, efficiency, and maintainability, CurePro LED Lamps deliver:

• Uniform curing intensity across the full print width

• Reduced heat transfer to the substrate

• Lower energy consumption compared to traditional UV systems

• Minimal maintenance and fast service access

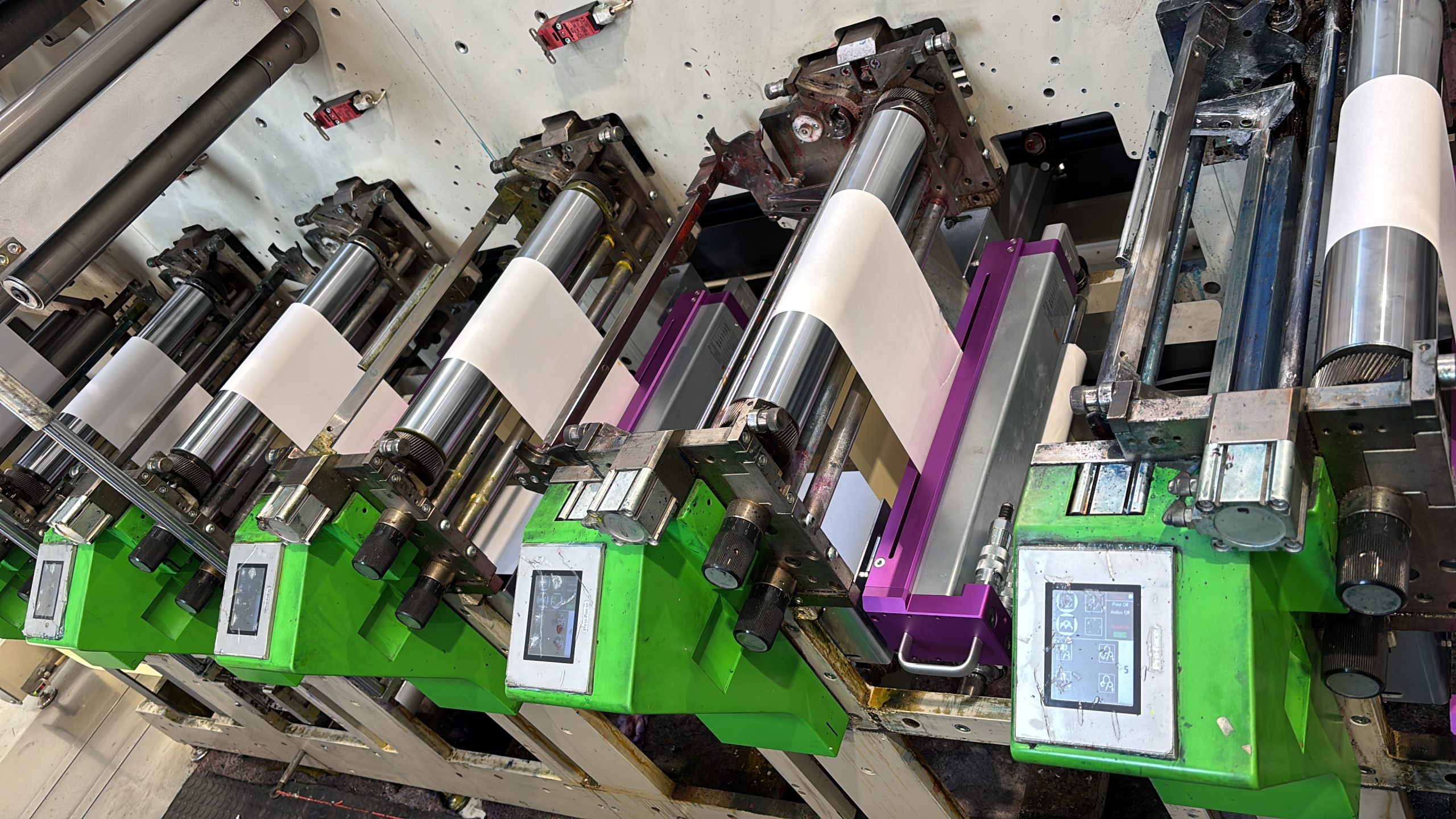

Whether integrated into OEM equipment or retrofitted onto existing presses, CurePro LED Lamps provide a scalable and future-ready curing solution.

UV LED Solutions for Every Machine Setup

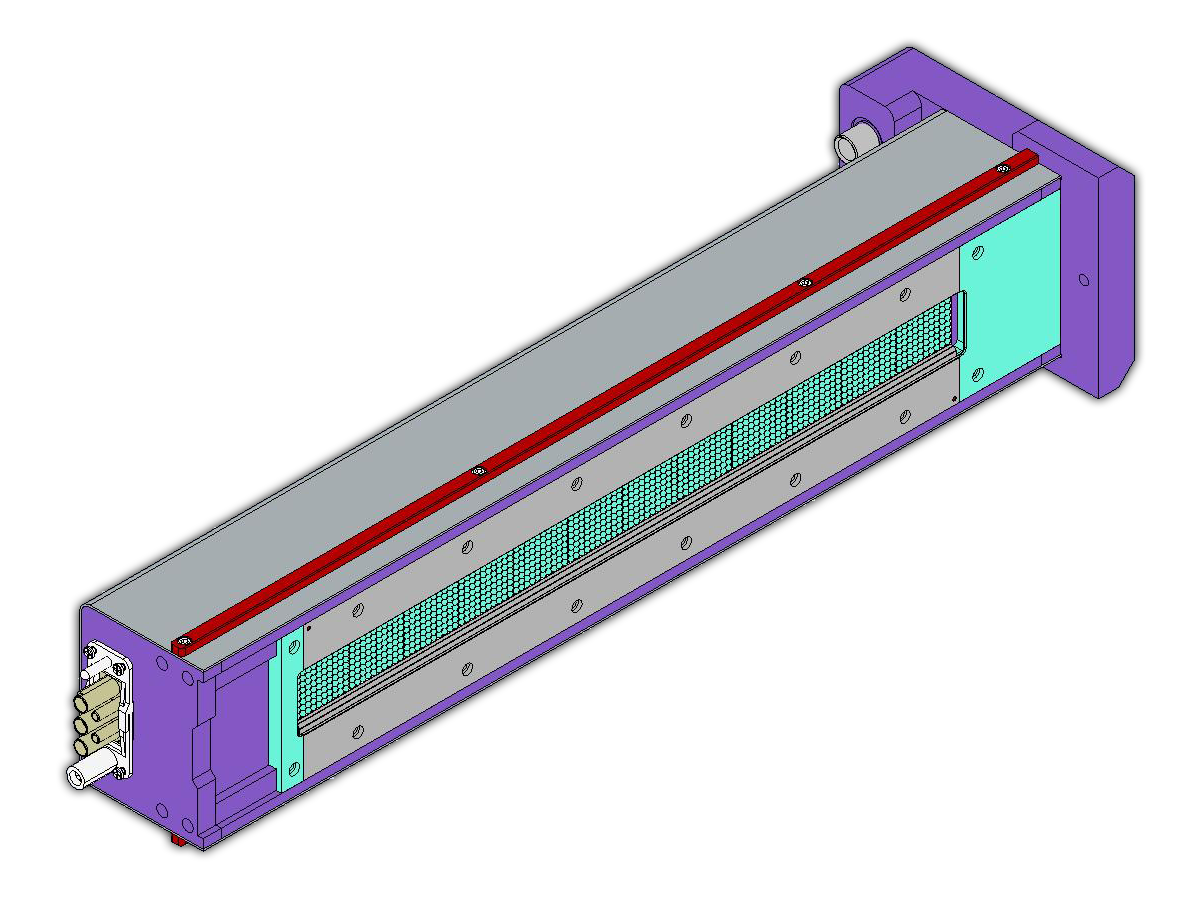

Each LED module is designed around your production environment: from lamp length and COB configuration to integrated liquid cooling and power distribution. Perfect alignment and uniform curing, no matter the machine setup.

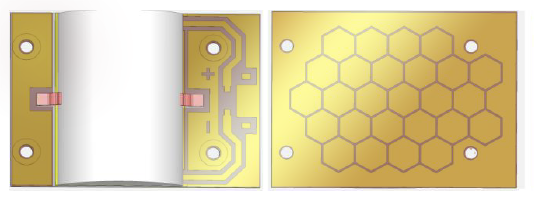

COB UV LED Modules

A complete range of high-performance COB UV LED modules designed to expand curing capabilities across multiple industrial applications — from compact systems to high-power, wide-format integrations.

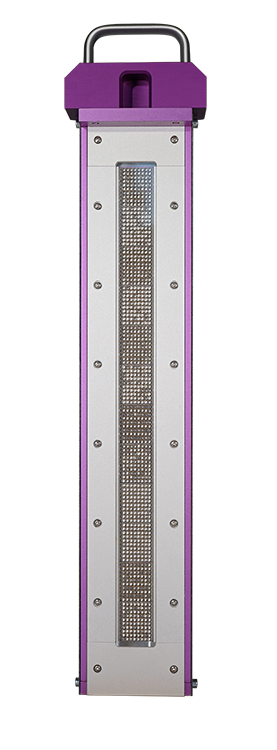

CurePro LED Lamps are engineered for maximum flexibility and consistent curing performance across a wide range of printing and coating applications. Built with modular architectures and optional COB LED configurations, they can be tailored in size from 10 cm up to 3 meters to perfectly match any production line.

0810 COB

Curepro COB 0810 is a compact, high-density UV LED module designed for precision curing applications where space efficiency and consistent output are essential.
Its optimized thermal management and stable irradiance make it ideal for narrow-format systems and OEM integrations requiring reliability and simplified installation.

Specifications

• SIZE: 40mm*30mm*8.54mm
• WP：385nm
• VF：320-340V
• IF：1A

Art.n° 08G1F2B11

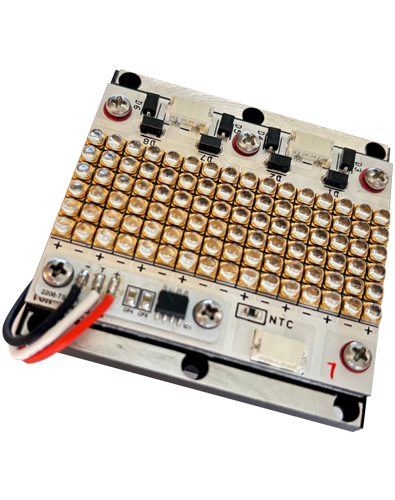

2206 COB

Soon out of production, contact us for availability.

COB 2206 has been a proven solution for mid-power industrial curing systems, delivering balanced power density and dependable performance.
As the product line evolves, this model is gradually being phased out in favor of next-generation modules offering enhanced efficiency and expanded application flexibility.

Specifications

• SIZE: 60mm*60mm*8.54mm
• WP：385nm
• VF：320-340V
• IF：1,4A

Art.n° 2206DCG_v01
Soon out of production, contact us for availability.

4596 COB

COB 4596 is a high-power UV LED module developed to extend curing capabilities to larger formats and more demanding industrial processes.
With increased output and optimized optical performance, it ensures uniform energy distribution, stable operation, and seamless integration into wide-format or high-speed systems.

Specifications

• SIZE: 40mm*30mm*8.54mm
• WP：365nm
• VF：320-340V
• IF：1A

Art.n° A4030KHR

Specifications

• SIZE: 40mm*30mm*8.54mm
• WP：385nm
• VF：320-340V
• IF：1A

Art.n° A4030LHR

Specifications

• SIZE: 40mm*30mm*8.54mm
• WP：405nm
• VF：320-340V
• IF：1A

Art.n° A4030NHR

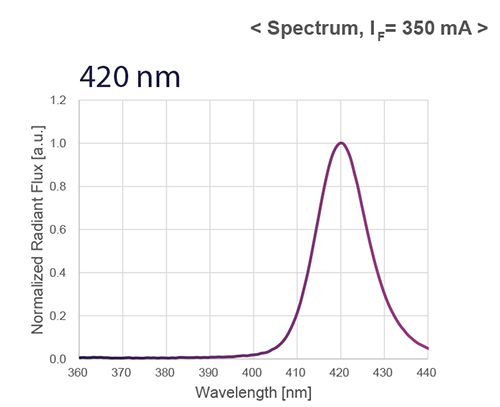

Specifications

• SIZE: 40mm*30mm*8.54mm
• WP：420nm
• VF：320-340V
• IF：1A

Art.n° L4030PHR

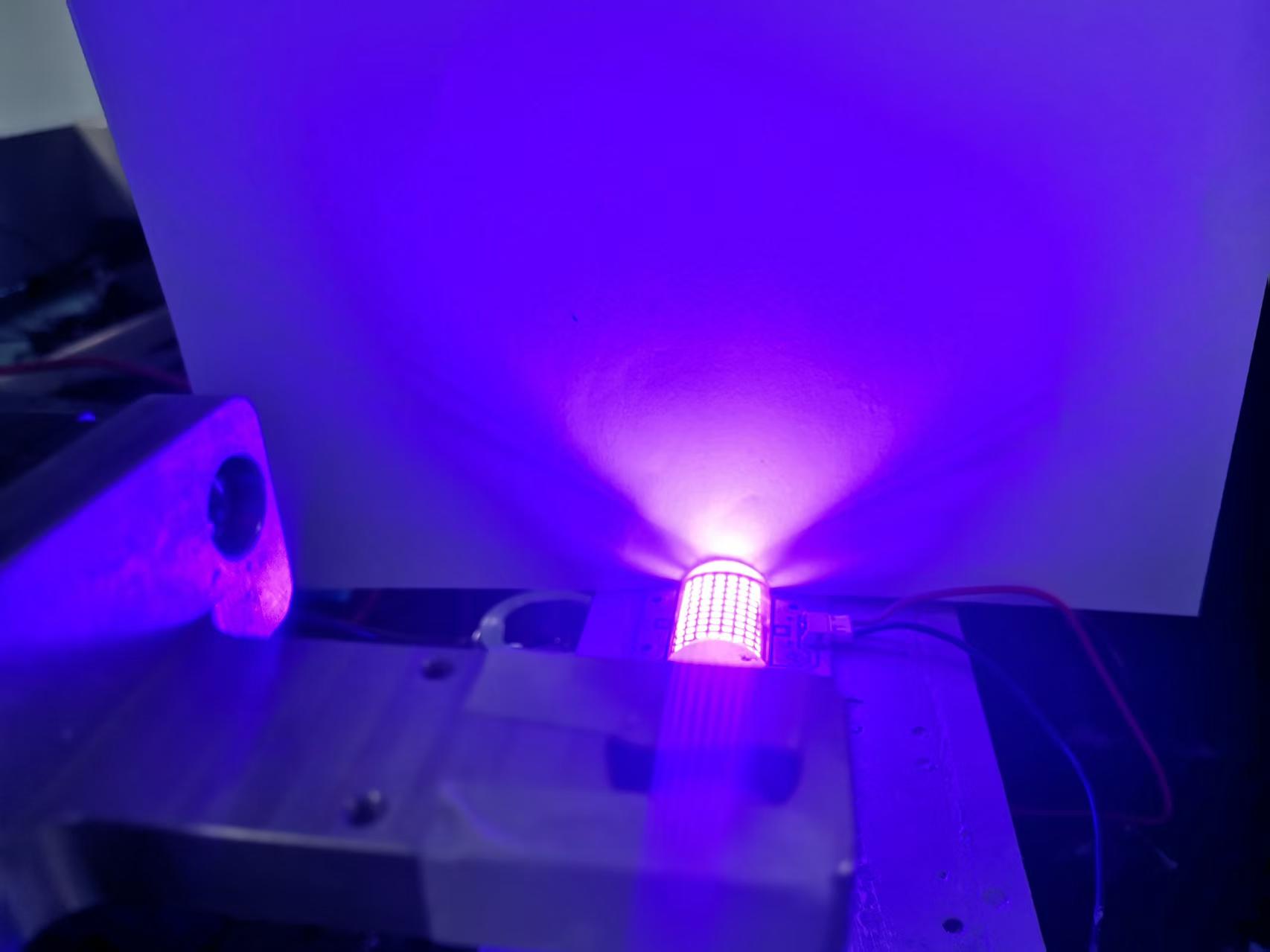

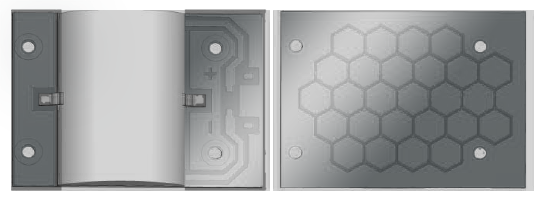

UVC COB

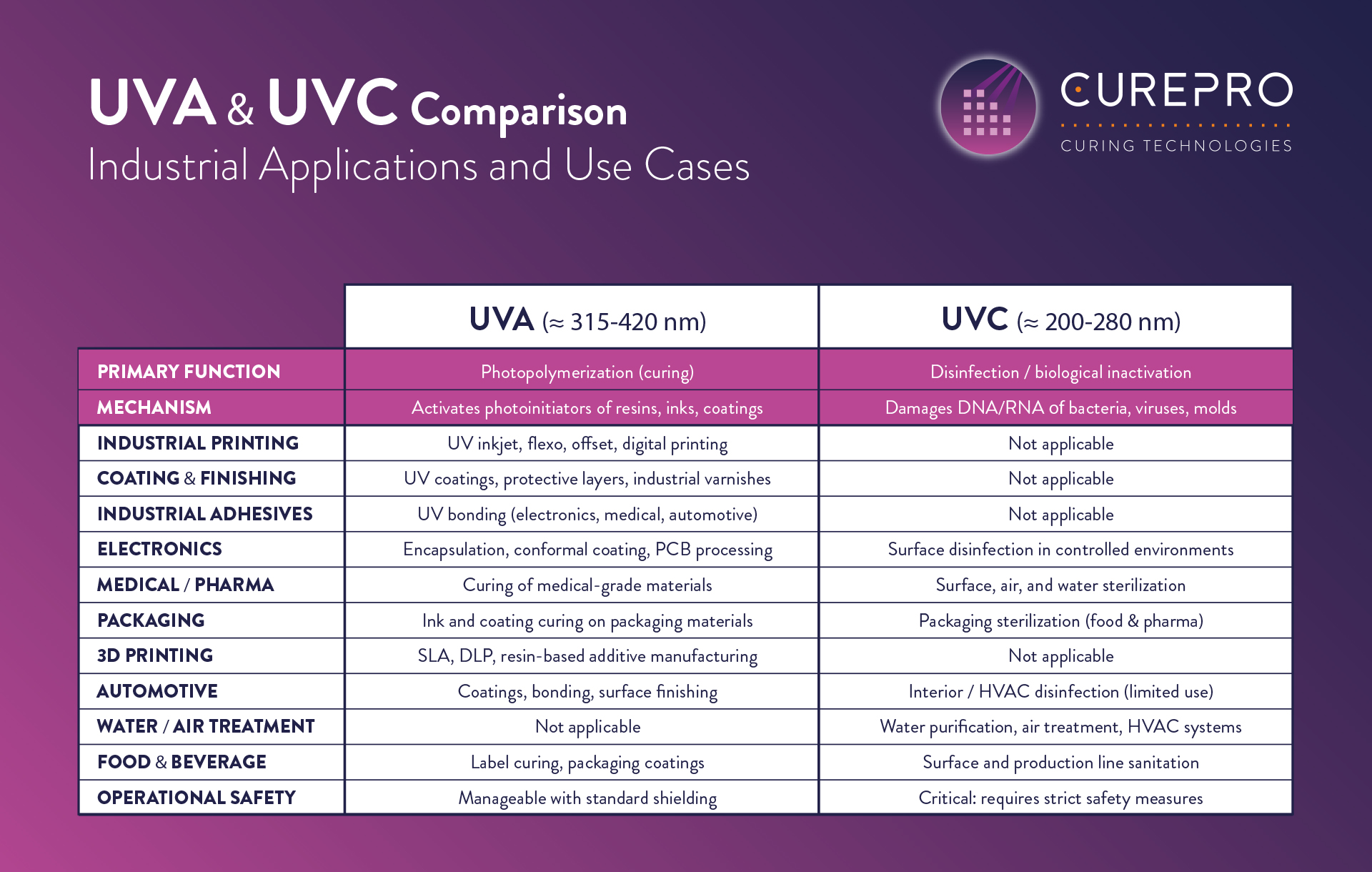

UVC Spectrum represents a new generation of UV curing technology. Developed within the CurePro portfolio as an advanced spectral platform, it is designed to progressively replace conventional mercury lamp systems in selected industrial applications.

Engineered for high-intensity output, precise process control and long-term operational stability, UVC Spectrum offers a more efficient and controllable alternative to traditional mercury-based curing solutions.

While mercury lamps remain established in certain processes, UVC Spectrum enables a transition toward cleaner, more energy-efficient and maintenance-optimized systems.

Rather than simply extending existing UV LED concepts, UVC Spectrum reflects CurePro’s commitment to developing forward-looking technologies that support the evolution of industrial curing.

Designed for scalable integration and industrial reliability, it provides a modern solution aligned with the future direction of the market.

Art.n° BA4030FKHR
